Integrate AI into your enterprise systems to transform the way your employees work. Intuitive, interconnected, and wearable AI provides instant access to information, freeing your team to focus on their core responsibilities and customer connections.

Our Ai Pin pilot program is just the start of innovative, AI-powered business solutions. It's the future of intelligent computing, for work.

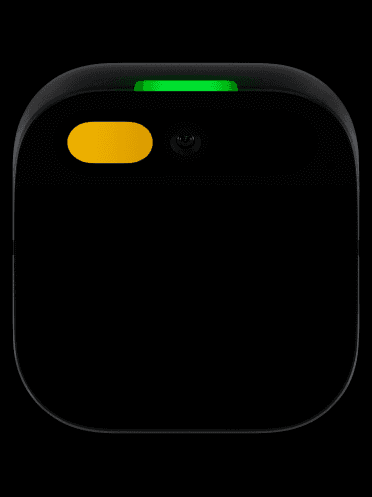

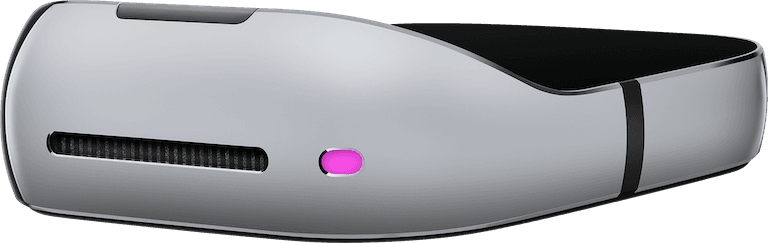

Size & Weight

With a simple screen-free design, Ai Pin is small in size, light in weight, and tailor-made for hand gestures.

Ai Pin34.2 g
44.50 mm
47.50 mm
Product Image
47.50 mm
44.50 mm
14.98 mm
Product Image
8.25 mm
14.98 mm
8.25 mm
19.33 mm
Product Image
9.42 mm
19.33 mm
9.42 mm
Battery Booster20.5 g
45.20 mm
47.16 mm
Product Image
47.16 mm
45.20 mm
8.25 mm
Product Image
8.25 mm

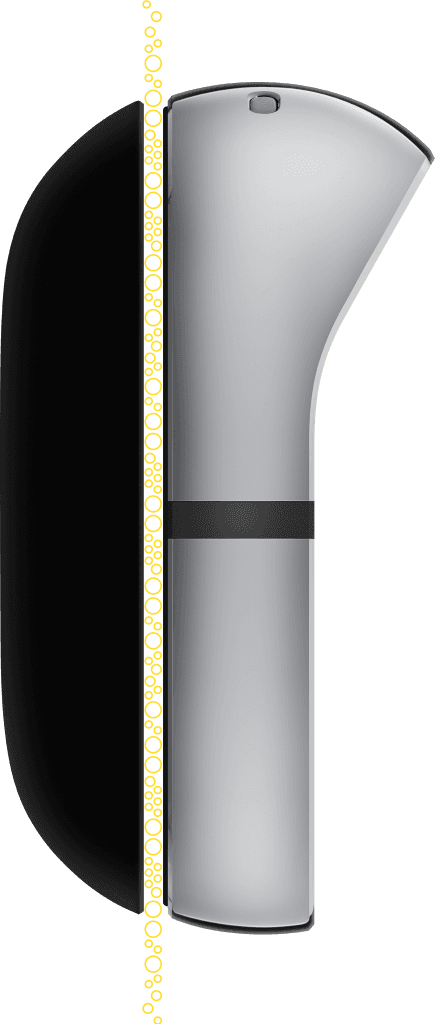

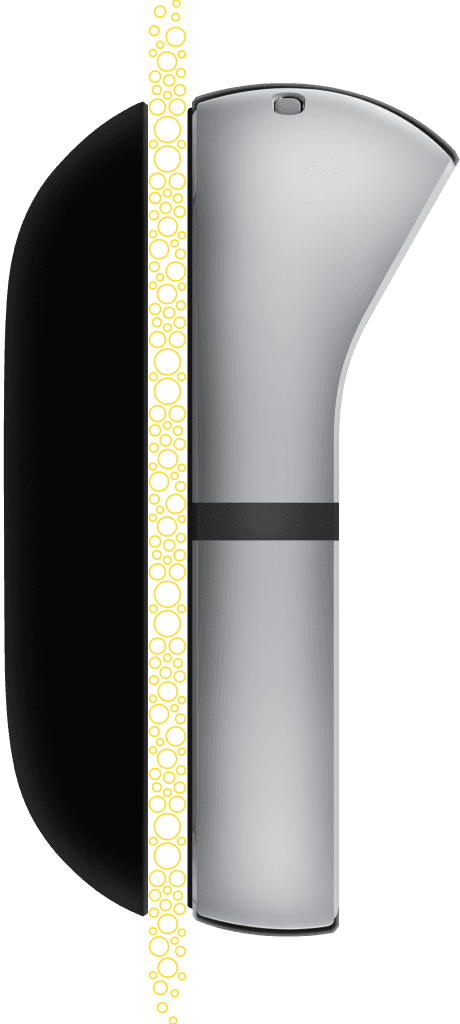

Magnet

Designed to power your Ai Pin securely through apparel ranging from shirts to jackets, and everything in between.

test
test
test
  • Thin
  • Normal
  • Thick
DetailsCustom designed magnetic array self-aligns to allow for wearability

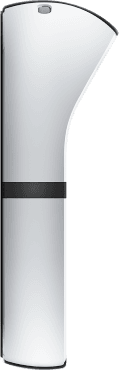

Battery

Made to keep you moving, Ai Pin’s rechargeable lithium-ion polymer batteries give you extra hours of battery life through our perpetual power system.

About batteryAbout batteryAbout battery
BatteryBuilt-in rechargeable lithium-ion battery
ChargingWireless power charging method designed for Ai Pin

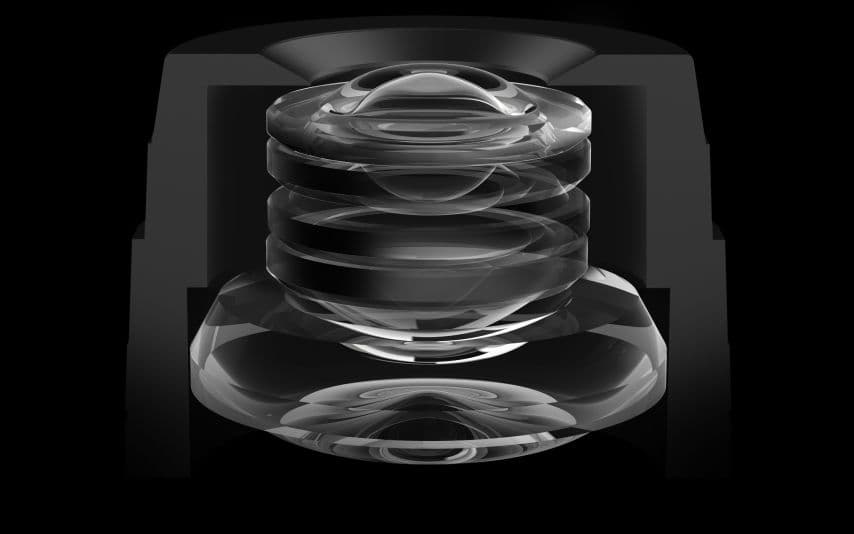

Ai Camera

Its wide-angled optical sensors allow Ai Pin to capture moments you want and the information you need about the world around you.

About camera
Photo Resolution13MP, 4160X3120 px
Video Resolution30fps, 1080p
Optical SpecsUltra Wide Camera 120° FOV, f/2.4 aperture, 5 Element lens with single glass element
Focal Distance40cm~Infinite

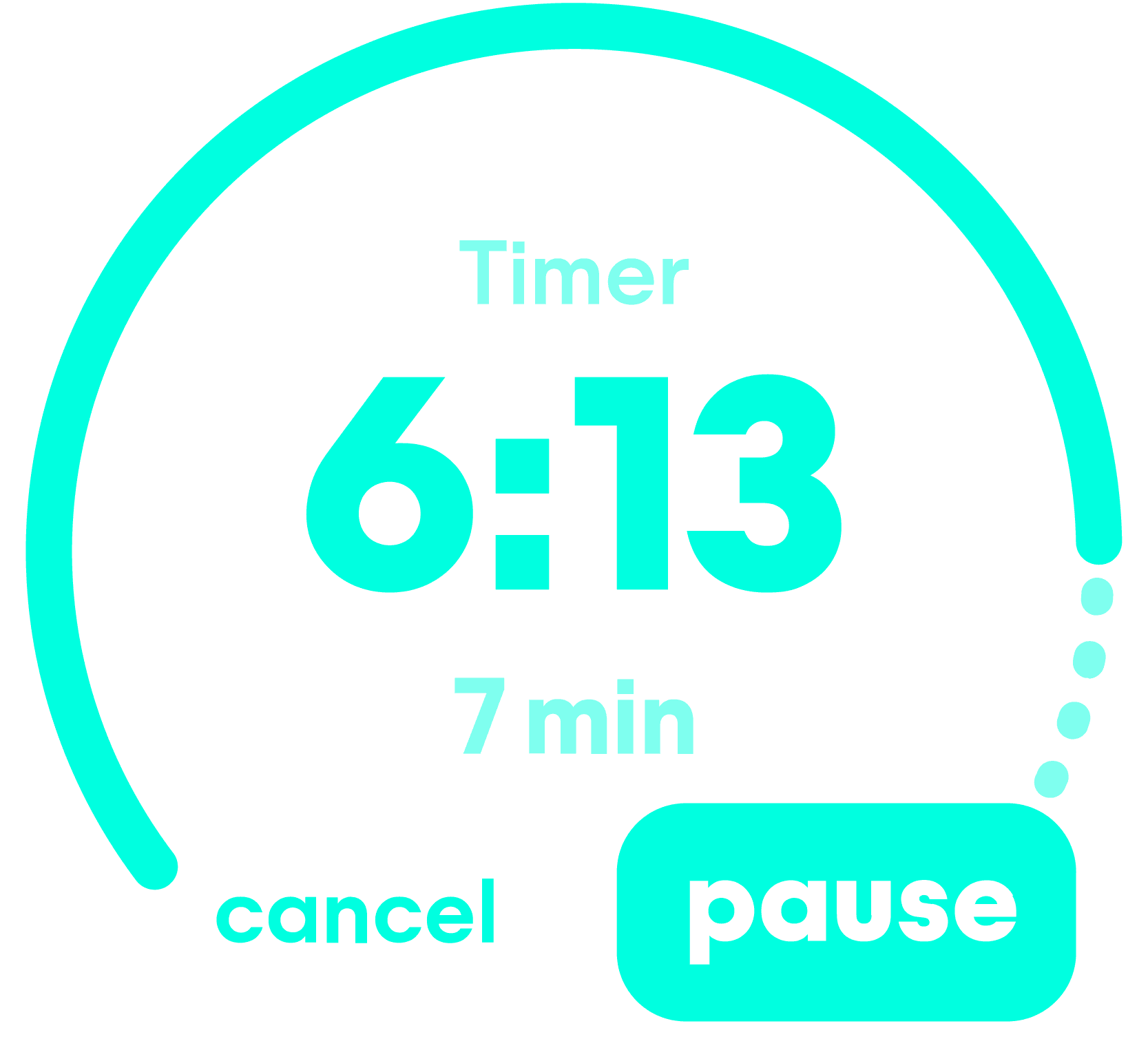

Laser Display

Revolutionary in design, Ai Pin's Laser Ink Display is designed to track exclusively to your palm. It safely transforms your hand into a vibrant canvas of text, graphics and UI elements.

About camera
Details Considered safe for normal operation. Equipped with a multi-layer protection system for enhanced operational safety and fault detection.
TechnologyLaser beam scanning projection system
Laser SourceCustom-Color Single-Diode Laser
Laser Safety ClassificationClass 2 per IEC60825-1:2014
Resolution720p Resolution
Operating Distance20 cm to 40 cm
Field of View 18.2° wide, 13.3° tall, 22.4° diagonal (7 cm x 9.6 cm at 30 cm distance)

LED

Thoughtfully placed and transparently positioned, Ai Pin’s Trust Light was designed to let you and those around you, confidently know when Ai Pin is in use.

Capture
Trust Light Light bar with 3 RGB LEDs, allowing for an array of colors.

Beacon

Offering the subtlest of pulses, Ai Pin’s ultra-private Beacon quietly informs you of incoming messages and important alerts.

Trusted Contact Call
Beacon Single RGB LED

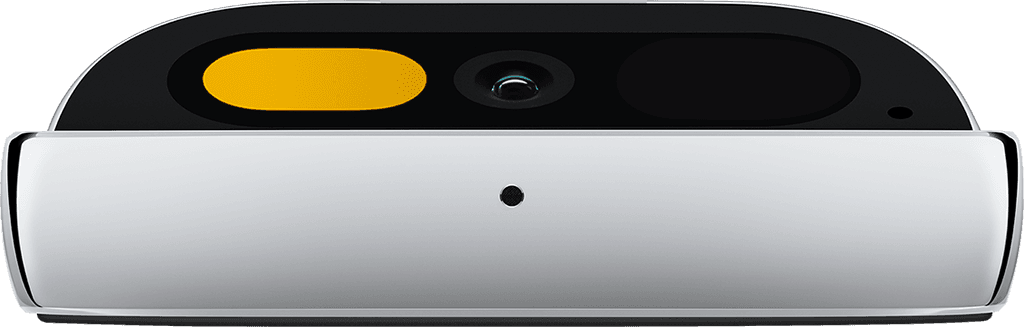

Ai Mic

Ai Pin’s microphone array senses the context of your input, determines what you need and routes to the appropriate Ai process.

Ai Mic
InputDual microphone array
Audio CallingVoice over LTE (VoLTE), 3G

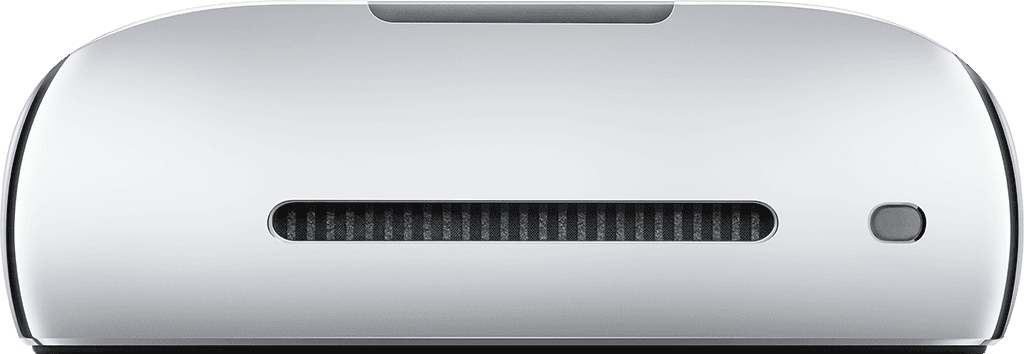

Personic Speaker

Ai Pin’s speaker system uses a Head Related Transfer Function (HRTF) to create a personally optimized bubble of sound, at a fixed distance, regardless of how soft or loud.

Personic Speaker
OutputBuilt-in Speaker
Audio CodecAAC
Audio CallingVoice over LTE (VoLTE), 3G

Touchpad + Gestures

Ai Pin’s touchpad understands a range of finger gestures to allow for simple and accelerated access to Ai experiences.

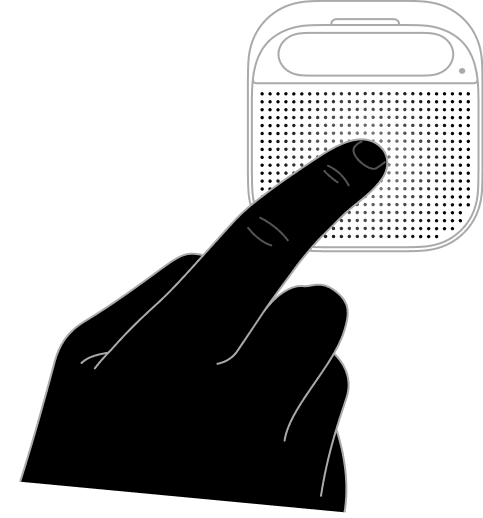

One-Finger Gestures:Tap and hold mic

Tap & hold

for Voice Input

Double tap call

Double tap to

Answer/End call or

Start/Stop Music

Swipe left or right track

Swipe Left/Right

for Previous/Next Track

Drag up or down volume

Drag Up/Down

for Volume

Tap and hold mic

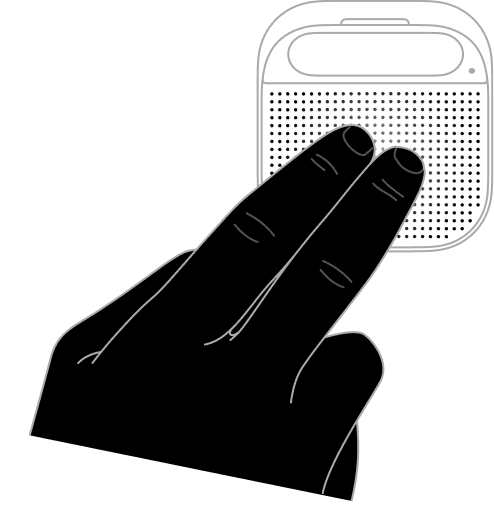

Two-Finger Gestures:Tap and hold translation

Tap & Hold

for Translation

Double tap photo

Double Tap

for Photo

Double Tap and hold video

Double Tap & Hold

for Video

Tap and hold translation

Sensors

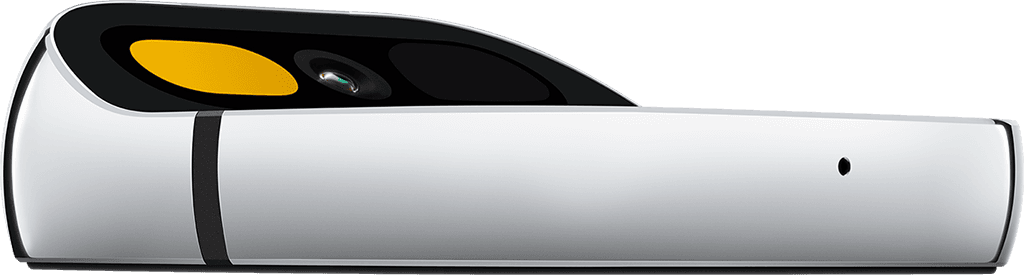

Ai Pin Sensors
LightAmbient light sensor
MotionAccelerometer and gyroscope
PositionMagnetometer + GPS
3D Depth Sensor Indirect Time of Flight Camera 125°FOV, f/1.4 aperture, 4 Element Lens 640x480 px VGA resolution

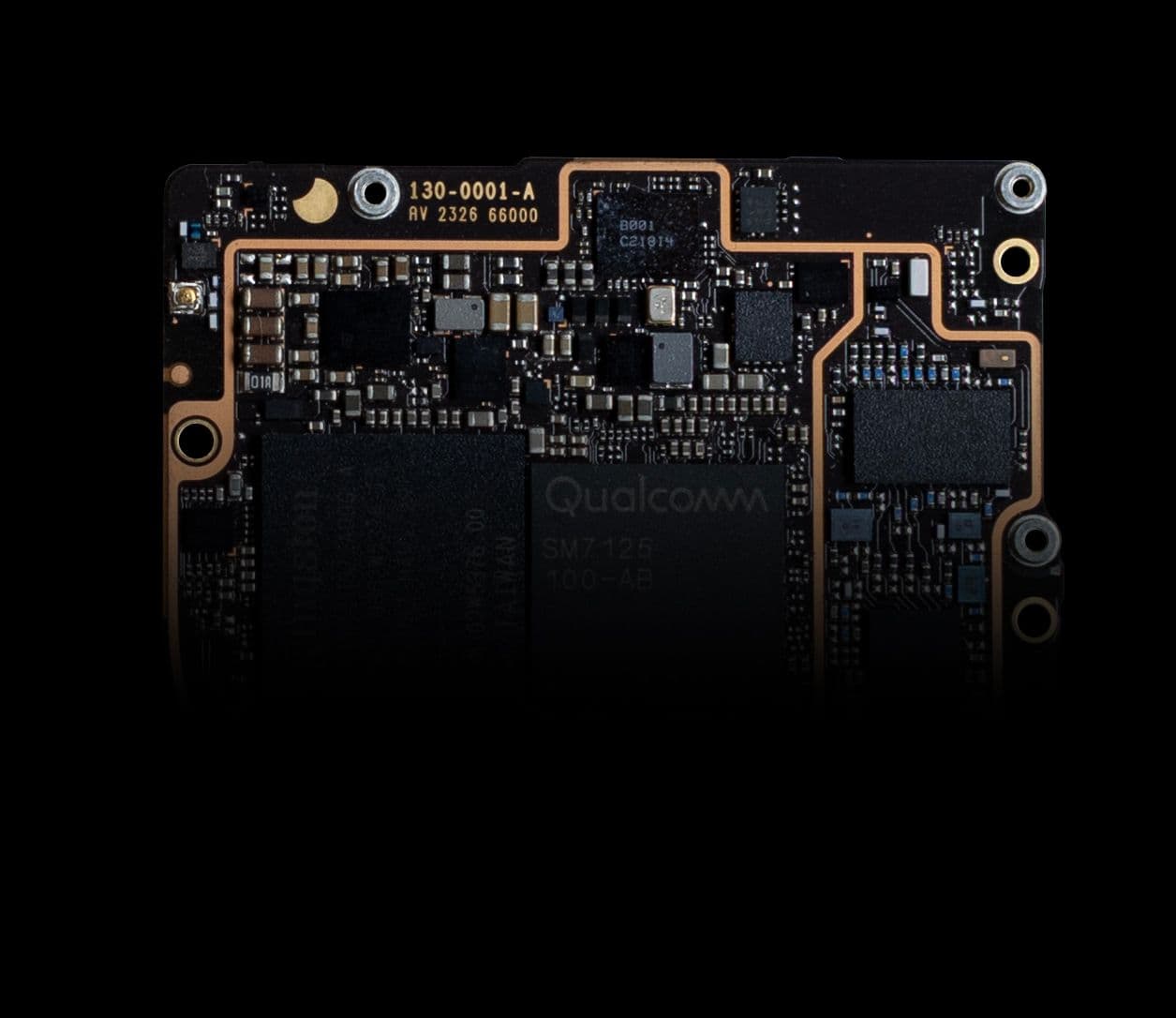

Compute

Ai Pin Compute
ProcessorOcta-core Qualcomm® Snapdragon™
Speed2.1 GHz (Accelerated on-device AI for enhanced performance)
Memory4GB RAM
Storage32GB eMMC

Connectivity

Cellular

Dual Antenna MIMO

FDD‑LTE (Bands 1, 2, 3, 4, 5, 7, 8, 12, 17, 20, 26, 66, 71)

TDD‑LTE (Bands 38, 41) UMTS/HSPA+/DC-HSDPA (850, 900, 1700/2100, 1900, 2100 MHz)

eSim

Wi-Fi

Wi-Fi 5 (802.11ac) with 2.4GHz + 5GHz

Bluetooth

Bluetooth 5.1

Codecs: SBC, AAC, LDAC, aptX™ HD

Supports common Bluetooth headsets and speakers

Location

GPS, GLONASS, Galileo, and BeiDou

Wi-Fi Positioning System, Assisted GPS

Network

Wireless Service, Connected by Network Provider

Environmental Specifications

Operating Temperatures

5°C to 35°C, 41°F to 95°F

Operating Altitude

Land-based operating elevation: up to 10,000 feet (3,000 meters)

Suitable for use in pressurized aircraft cabins
